About the lift

Residential classic lift

Complying to AS1735. 18 – Passenger lifts for private residences, the Classic residential lift is a very practical solution for contemporary home design. Designed by West Coast Elevators for the budget-conscious.

classic home lift with blue swing door
This residential lift package comes with
  • Powder coated solid steel landing doors
  • 400mm straight aluminium door handles
  • Full height control operating panel with sleek button integration design
  • 2 x LED ceiling lights
  • PVC or RAW set down flooring

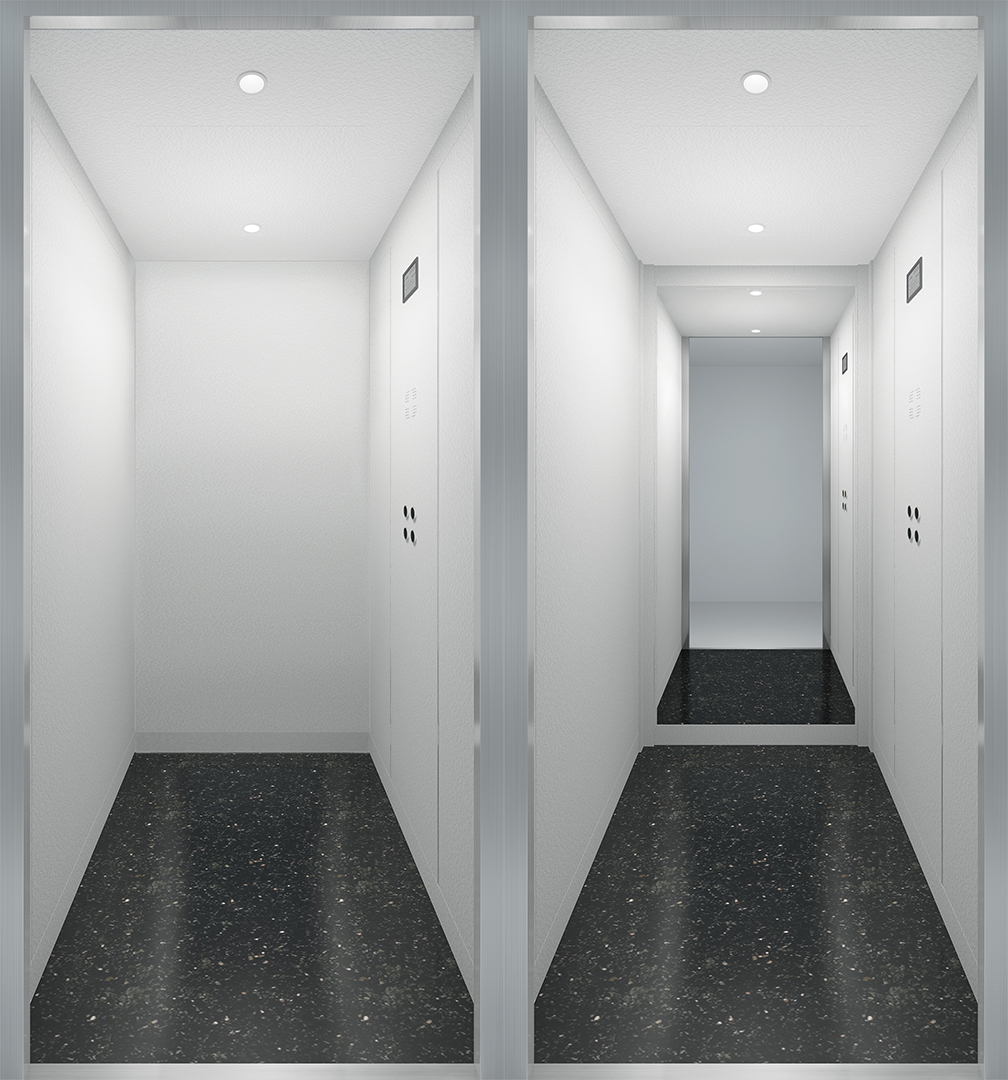

  • Choice of gloss white or brushed luxury skinplate wall finishes
  •  Phone handset.
Safety features
  • Battery backup & cabin lighting in case of power failure
  • Automatic return to any floor of your choice
  • Full height light curtain protection beams across cabin entrance
  • Over load alarm and indicator
  • Creeping speed feature.
classic home lift built into feature wall with dark reflective door
classic design for a home lift in perth
Incorporate the Classic lift into your next home design

Are you are building a new low rise commercial premises or looking to retrofit a lift into an existing building? West Coast Elevators highly skilled consultants can assist you with design, ideas and concepts to ensure you get the best product in the most suitable location. You will be amazed where we can incorporate a lift into any commercial or public building design, minimising space and saving on builders works. Call today for a no obligation measure and quote with experienced technical advice on 1300 000 270.

Experience amazing
elevator lift code requirements perth
LIFT CODE

AS1735.18

cabin size of a lift
CABIN SIZE

600w to 1000w x 1300d (mm)

door-opening of a lift
CLEAR DOOR OPENING

From 600 up to 900 (mm)

load rating of a lift
LOAD RATING

300kg

Travel speed of an elevator
SPEED

0.30m/s

how high a lift can go australia
TRAVEL

12m (Max)

Pit size of a lift
PIT DEPTH

300kg - 120mm

Head-room in a lift
HEAD ROOM

2500mm

30+ year elevator lifespan perth
LIFE SPAN

30+ years

how much power does a lift use
POWER

300kg - Single Phase 25amp
