COMMERCIAL SUITE LIFT

Complying to AS1735.16 Lifts for persons with Limited Mobility

The Commercial Suite Lift package is Designed by West Coast Elevators specifically for low rise Commercial and Public applications. This Lift comes with all requirements of AS1735.16/12 and compliant to the Building Code of Australia (BCA).

West Coast Elevators have tailored a complete package for every Commercial Suite Lift as ‘standard’ making the Commercial Suite Lift a superior low rise commercial lift with automatic sliding cabin and landing doors.

TECHNICAL INFORMATION
LIFT CODE AS1735.16/12
LOAD RATING 400kg-500kg
SPEED 0.30m/s
TRAVEL 12m (Max)
PIT 400kg - 150 mm (Min)
500kg - 150mm (Min)
HEADROOM 2600 mm (Min)
CONTROL CABINET 750Wx410Dx1400H (mm)
POWER Single Phase 32amp
Commercial suite lift logo white

SAFETY FEATURES – PEACE OF MIND

  • Battery backup and Cabin lighting in case of power failure
  • Automatic return to lowest floor
  • Full height light curtain protection beams across cabin entrance
  • Over Load Alarm and Indicator
  • Creeping Speed Feature
  • Auto Dial Telephone in Cabin
  • Landing Door Indicators
  • Cabin arrival Gong to each Landing.

EACH COMMERCIAL SUITE LIFT PACKAGE COMES WITH THE FOLLOWING FINISHES:

Z

Landing Doors and Frames: Brushed Stainless Steel

Z

Cabin Doors: PPS10 Luxury Skinplate

Z

Cabin Walls: PPS10 Luxury Skinplate and Half Height Mirror

Z

Control Operating Panel: PPS10 Luxury Skinplate with Integrated Button Design & Digital Display.

Z

Ceiling: Signal White Powder Coating with 4 x LED

Z

Floor: PVC BIANCO (White)

“This is our 3rd lift with West Coast Elevators. The product is very reliable and the service is great. See you on the next one”



Vince

Prada Constructions

SUITE LIFT COLLECTION

VIRTUAL CABIN TOUR

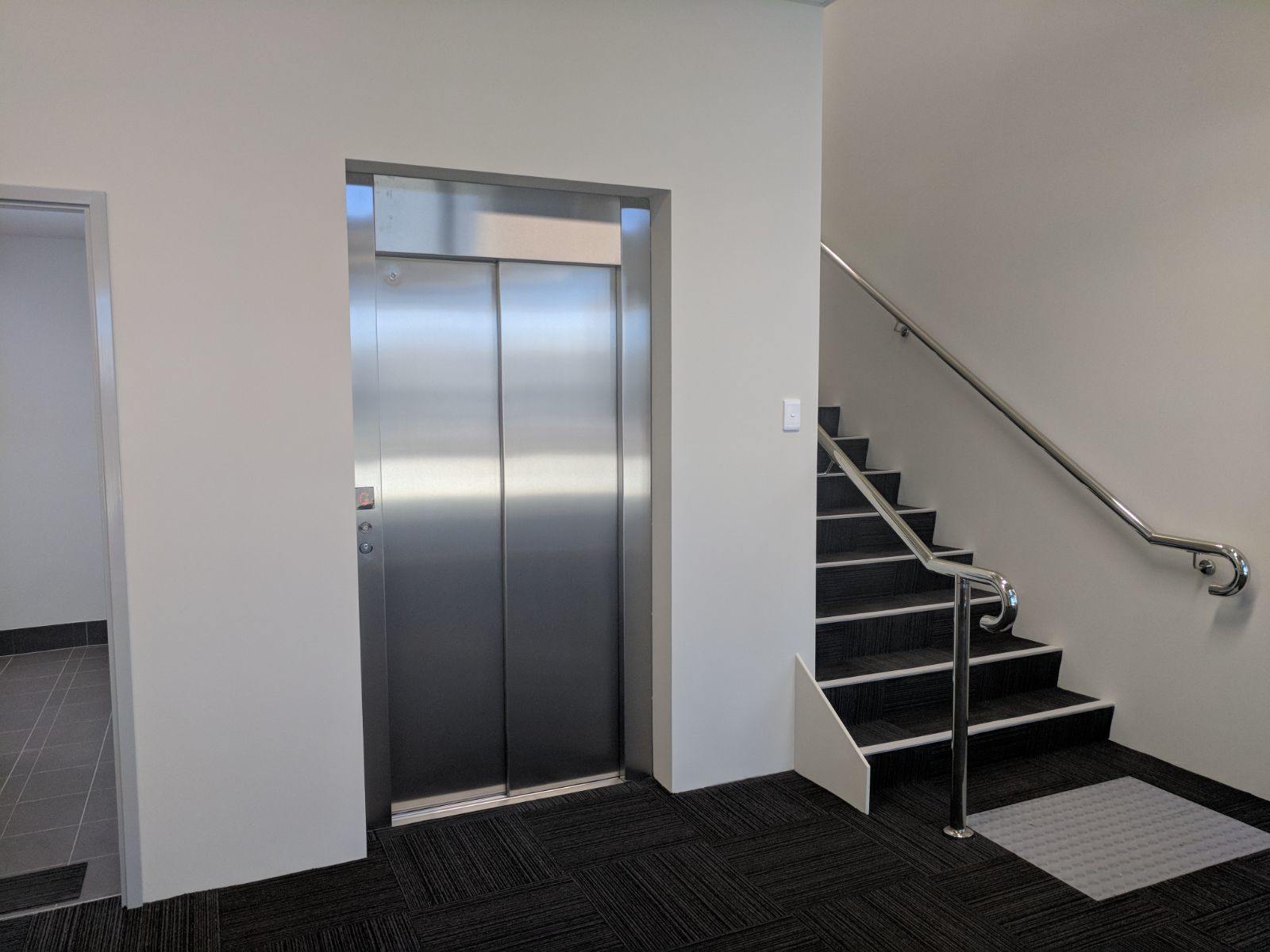

View a Recent Project

Client:Prada Constructions
Location: Bibra Lake WA
