Crystal Mini Lift

About the lift

Complying to AS1735.14 & AS1735.15 – Low rise platforms for passengers & non-automatically controlled limited mobility lift

The sleek and efficient Crystal Lift is the perfect solution for Disability Access. West Coast Elevators has built this package specifically for Western Australia. The Crystal Lift platform is perfect for any environment thanks to its sleek and carefully designed configuration, which includes stainless steel frame, toughened safety glass panelling, mechanical guard system, anti-slip aluminium floor, glass doors with semiautomatic closing and electric lock.

Building large ramps for limited mobility access to buildings can be costly with the current gradient required for ramps, the space required can be substantive and not always achievable. The Crystal Lift is the perfect solution for saving space and offers immediate access to any building entrance. Getting your certificate of occupancy is easy when you have a compliant Crystal Lift installed.

Saftey Features


  • Emergency Battery backup in case of power failure
  • Platform and Landing Door Enabling Keys
  • Braille Push Buttons

Technical Information

LIFT CODE AS1735.14
PLATFORM SIZE 1200W - 1600D (mm)
CLEAR DOOR OPENING 900 mm
LOAD RATING 300kg - 400kg
TRAVEL 1m (Max)
PIT 240 mm (Min)
POWER Single Phase 25amp
LIFT CODE AS1735.15
PLATFORM SIZE 1200W - 1600D (mm)
CLEAR DOOR OPENING 900 mm
LOAD RATING 300kg - 400kg
TRAVEL 1.6m (Max)
PIT 370 mm (Min)
POWER Single Phase 25amp

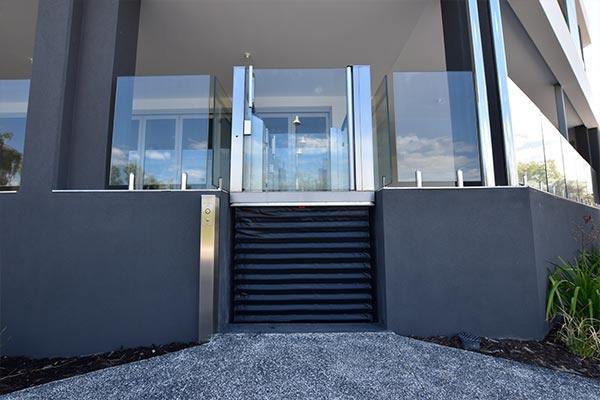

north-coogee-pic3

Each Crystal Lift package comes with:

  • Guaranteed 300kg or 400kg Load Rating
  • Digital Cabin Display
  • Full Height Control Operating Panel - Sleek Button Integration Design
  • 4 x LED Ceiling Lights
  • Full Height Flat Integrated Door Handles
  • Wide range of Luxury Cabin Wall Finishes

Incorporate the 'Crystal Mini Lift' into your next building design.

Are you are building a new low rise commercial premises or looking to retrofit a lift into an existing building? West Coast Elevators highly skilled consultants can assist you with design, ideas and concepts to ensure you get the best product in the most suitable location. You will be amazed where we can incorporate a lift into any commercial or public building design, minimising space and saving on builders works. Call today for a no obligation measure and quote with experienced technical advice on 08 6263 5253.

Lift Virtual Tour
