Residential Suite Lift

Complying to AS1735.18 Passenger lifts for private residence

The Suite Lift is one of the most attractive and captivating home lifts on the market. West Coast Elevators guarantee a minimum 300kg load rating with every Suite Lift cabin configuration as ‘standard’ making the Suite Lift an industry leading mighty powerful home lift with manual swing landing doors. The Suite Lift cabin can be completely customised starting from 600x600mm all the way up to 1100x1400mm Offering complete flexibility with design.

TECHNICAL INFORMATION
LIFT CODE AS1735.18
LOAD RATING 300kg-400kg
SPEED 0.30m/s
TRAVEL 12m (Max)
PIT 120 mm (Min)
HEADROOM 2500 mm (Min)
CONTROL CABINET 750Wx410Dx1400H (mm)
POWER 300kg - Single Phase 25amp
400kg - Single Phase 32amp
Residential suite lift

SAFETY FEATURES – PEACE OF MIND

  • Battery backup and Cabin lighting in case of power failure
  • Automatic return to lowest floor
  • Full height light curtain protection beams across cabin entrance
  • Over Load Alarm and Indicator
  • Creeping Speed Feature

EACH RESIDENTIAL SUITE LIFT PACKAGE COMES WITH THE FOLLOWING INCLUSIONS AS STANDARD:

Z

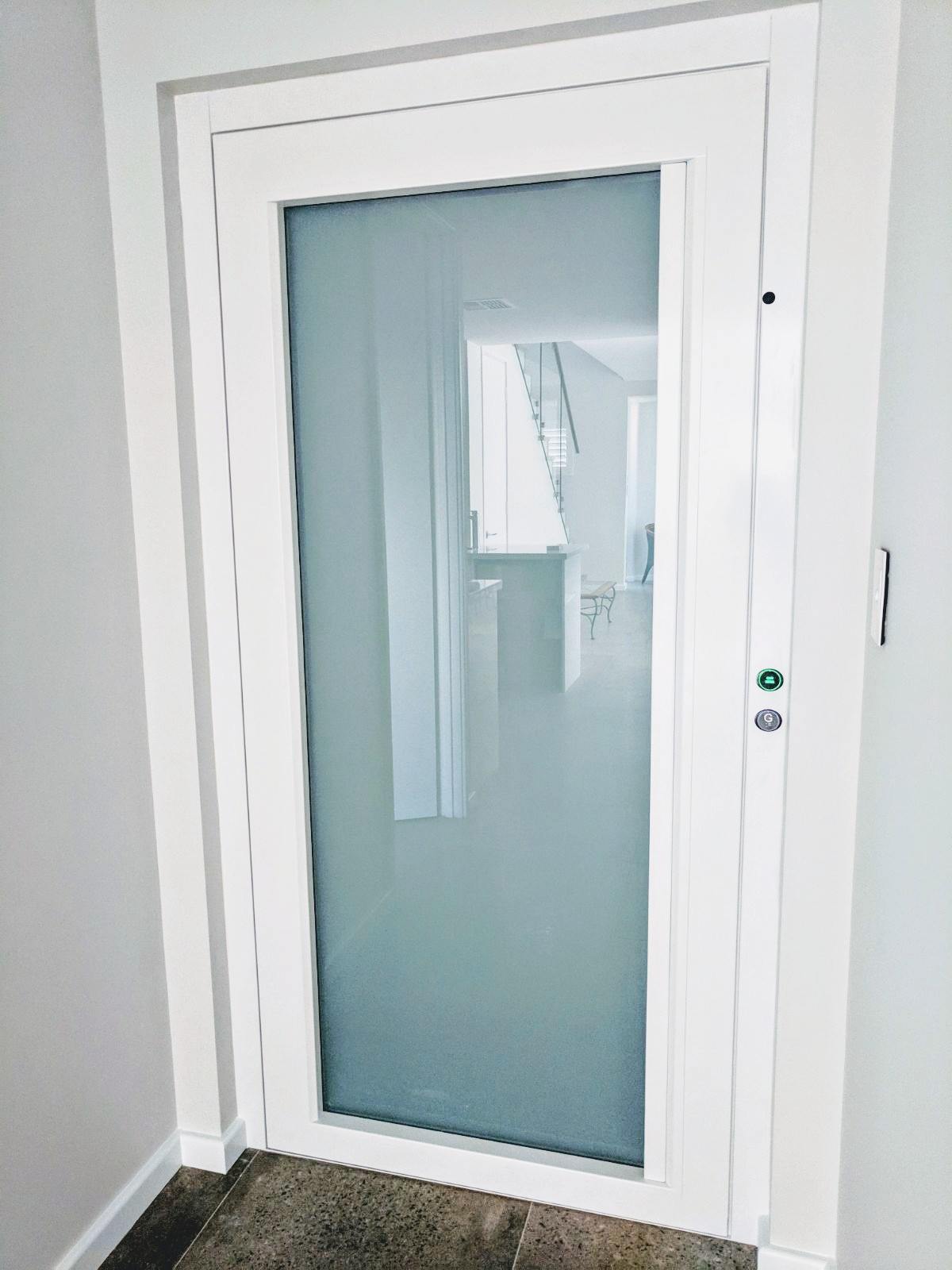

Landing Doors: Signal White Powder Coating Frame with Milk White Glass

Z

Door Handles: Full Height Integrated

Z

Cabin Walls: PPS10 Luxury Skinplate and Full Height Mirror

Z

Control Operating Panel: Full Height PPS10 Luxury Skinplate with Integrated Button Design & Digital Display.

Z

Ceiling: White Powder Coating with 4 x LED

Z

Floor: Custom Stone Tiles provided by customer

“We are very satisfied with our new lift. The West Coast team were very professional and efficient”



Mrs George

Homeowner

SUITE LIFT COLLECTION

VIRTUAL CABIN TOUR

View a Recent Project

Client: Mr & Mrs George
Location: CITY BEACH WA

ENQUIRE ABOUT THE RESIDENTIAL SUITE LIFT TODAY
