Round Panoramic Suite Lift

ROUND PANORAMIC SUITE LIFT

The Round Panoramic Suite Lift is the clear leader within the industry. Unique by design and accompanied by the finest details.

Architects and Designers alike love the Round Panoramic Suite Lift as the preferred choice when incorporating a luxurious lift into the most prestigious homes. The Round Panoramic Suite Lift can be completely customised to suit any curved or round space. This Lift is housed in it’s own custom designed Round Glazed Metal Structure so there is no need to construct a masonry shaft.

This amazing design is the result of engineering excellence and continued design innovation.

CUSTOM DESIGNS
round panoramic suite lift custom design

SAFETY FEATURES – PEACE OF MIND

  • Battery backup and Cabin lighting in case of power failure
  • Automatic return to lowest floor
  • Full height light curtain protection beams across cabin entrance
  • Over Load Alarm and Indicator
  • Creeping Speed Feature

EACH ROUND PANORAMIC SUITE LIFT PACKAGE COMES WITH THE FOLLOWING INCLUSIONS AS STANDARD:

Guaranteed 300kg Load Rating

Digital Cabin Display

Full Height Control Operating Panel – Sleek Button Integration Design

4 x LED Ceiling Lights

Full Height Flat Integrated Door Handles

Wide range of luxury cabin wall finishes

TECHNICAL INFORMATION

LIFT CODEAS1735.18
CABIN SIZE1200W x 945D (mm)
GLASS METAL STRUCTURE1540mm (Diameter)
LOAD RATING300Kg
SPEED0.30m/s
TRAVEL12m (Max)
PIT150 mm
HEADROOM2500 mm
CONTROL CABINET250Wx410Dx1400H (mm)
POWERSingle Phase 25amp
round panoramic suite lift

COMPLETE DESIGN FLEXIBILITY IS ALSO AVAILABLE WITH THE ROUND PANORAMIC SUITE LIFT

If you are building a new home or looking to retrofit a lift into an existing home, West Coast Elevators highly skilled consultants can assist you with design, ideas and concepts to ensure you get the best product in the most suitable location. You will be amazed where we can incorporate a lift into any building design, minimising space and saving on builders works.

SUITE LIFT COLLECTION

VIRTUAL CABIN TOUR

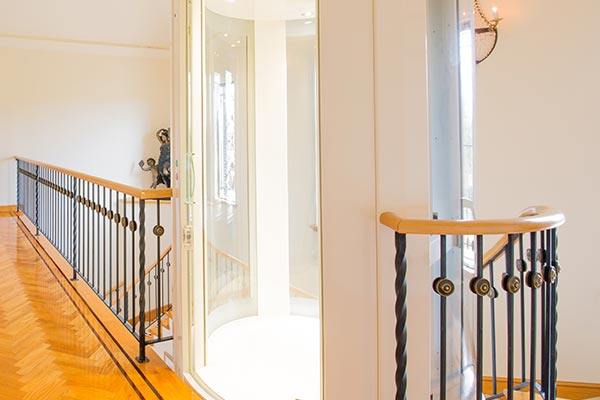

View a Recent Project

Client: VIP Private
Location: Applecross WA

Applecross lift installation

ENQUIRE ABOUT THE CRYSTAL SUITE LIFT TODAY
