⎯⎯⎯⎯ ABOUT the lift

Residential classic lift

Complying to AS1735. 18 - Passenger lifts for private residence.
The Classic Lift is a very practical solution for contemporary design. Designed by West Coast Elevators for the budget conscious.

Each Classic lift package
comes with

  • Powder coated solid steel landing doors

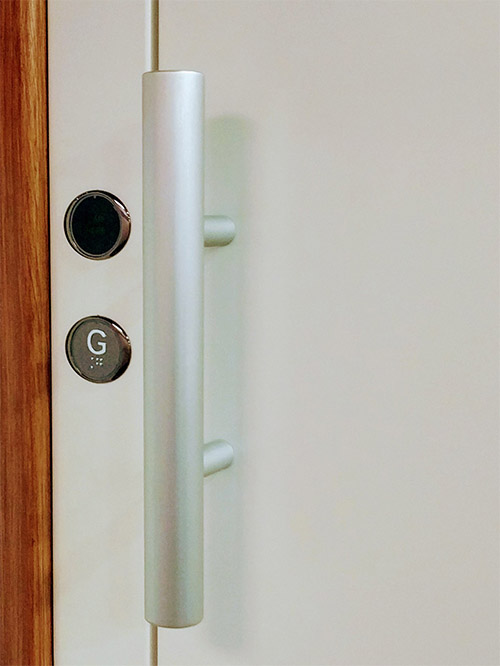

  • 400mm straight aluminium door handles
  • Full height control operating panel with sleek button integration design
  • 2 x LED ceiling lights
  • PVC or RAW set down flooring
  • Choice of gloss white or brushed luxury skinplate wall finishes
  •  Phone handset

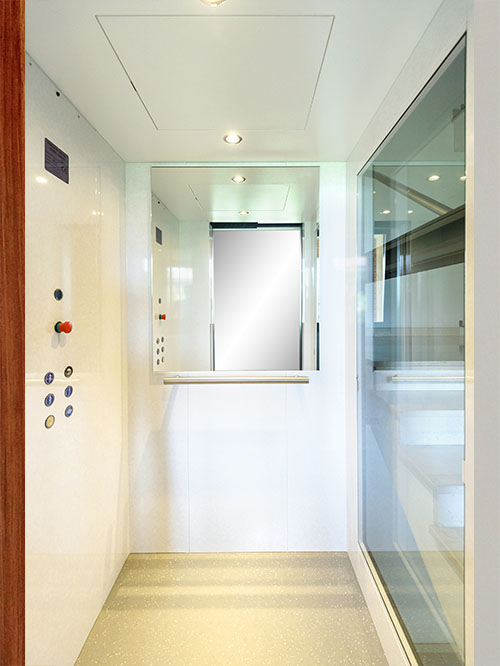

Residential Classic Lift Perth - West Coast Elevators

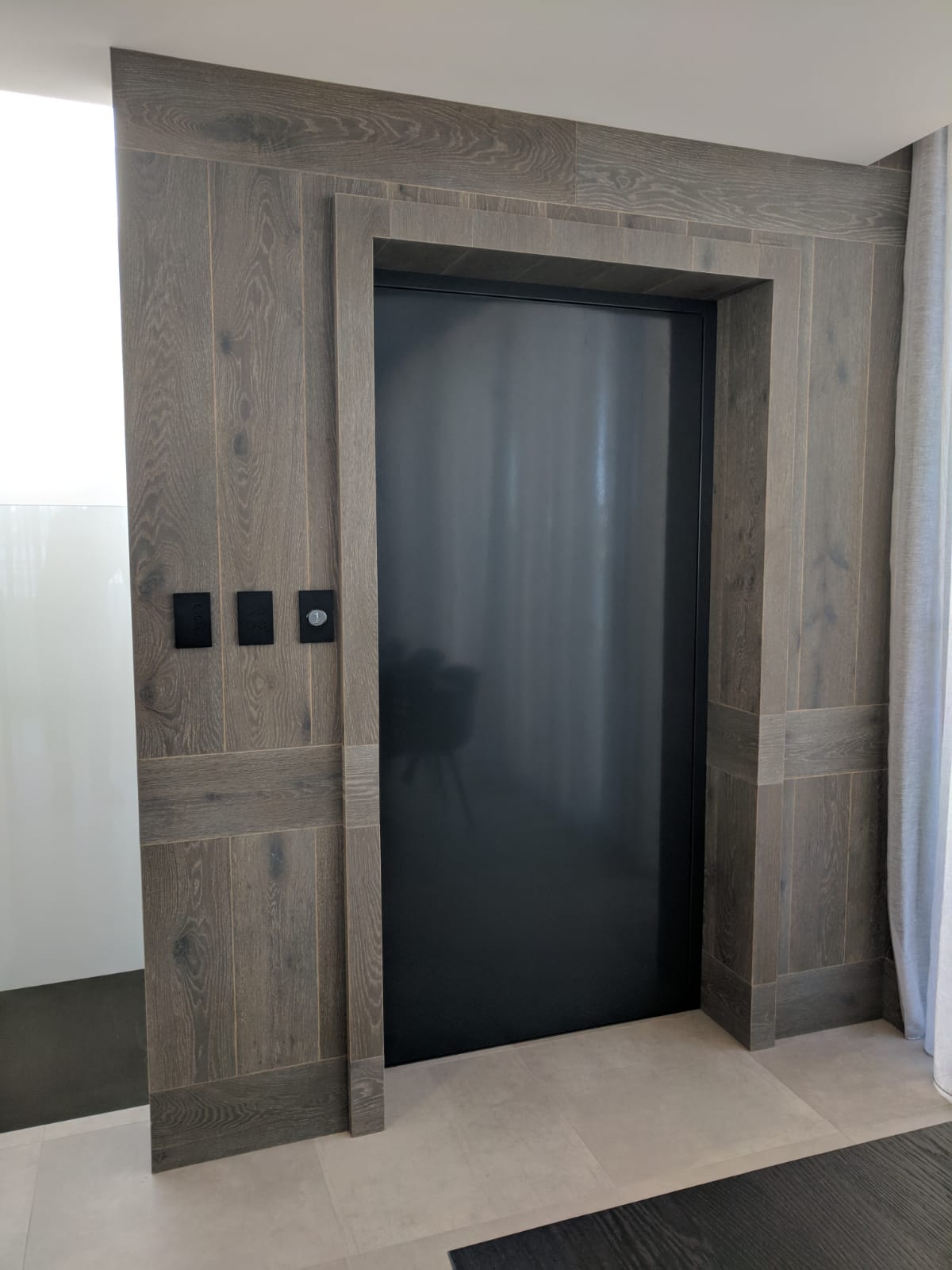

Classic lift company in Perth - West Coast Elevators

Safety features

  • Battery backup & cabin lighting in case of power failure
  • Automatic return to any floor of your choice
  • Full height light curtain protection beams across cabin entrance
  • Over load alarm and indicator
  • Creeping speed feature

Technical Information

LIFT CODE
AS1735.18

TRAVEL
12m (Max)

SPEED
0.30m/s

LIFESPAN
30+ years

DOOR OPENING
From 600 up to 900 (mm)

LOAD RATING
300kg

HEAD ROOM
2500mm

CABIN SIZE
600w to 1000w x 1300d (mm)

PIT
300kg - 120mm

POWER
300kg - Single Phase 25amp

Incorporate the
Classic Lift into your next home design

Are you are building a new low rise commercial premises or looking to retrofit a lift into an existing building? West Coast Elevators highly skilled consultants can assist you with design, ideas and concepts to ensure you get the best product in the most suitable location. You will be amazed where we can incorporate a lift into any commercial or public building design, minimising space and saving on builders works. Call today for a no obligation measure and quote with experienced technical advice on 08 6263 5253.
