About the lift

Commercial Maxi lift

Mighty Powerful & Fast General Passenger Lift

Complying to AS1735.1 / 12 General Passenger Lift.

The Commercial MAXI Lift package is designed specifically for commercial and public applications. This lift comes with a large cabin size and all the requirements of AS1735.1 / 12. Complying to the DDA and NCC (Building Code of Australia).

West Coast Elevators have tailored a complete package for every MAXI Lift as “standard”, making it an extremely reliable, mighty powerful and fast General Passenger Lift.

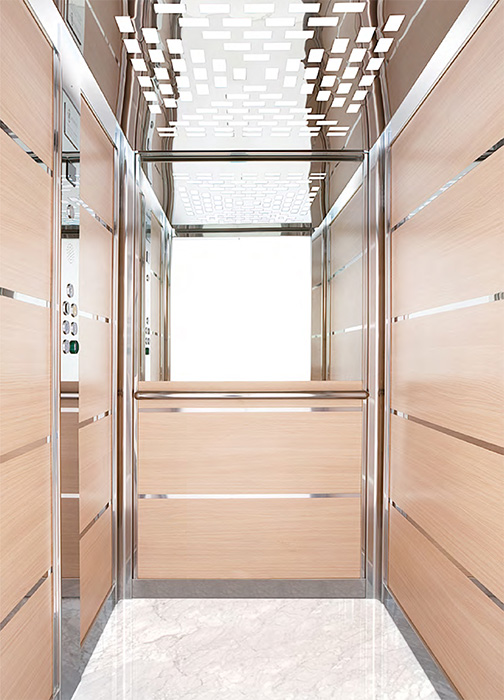

spacious commercial lift with designer lights and wood panels for detailing
Each Maxi lift package comes with
  • Digital cabin and landing displays
  • Voice Annunciator
  • Full height control operating panel with sleek button integration design
  • 6 x LED ceiling lights
  • Grey separate push buttons with braille
  • Luxury skinplate and stainless steel wall finishes
  • Cabin and landing door enabling keys
  • Auto-dial phone with integrated soft touch button
  • Round stainless steel handrail
  • 2 Hour Fire Rated Landing Doors
Safety Features
  • Battery backup and cabin lighting in case of power failure
  • Automatic return to nearest floor level
  • Full height light curtain protection beams across cabin entrance
  • Overload alarm and indicator
  • Creeping speed feature

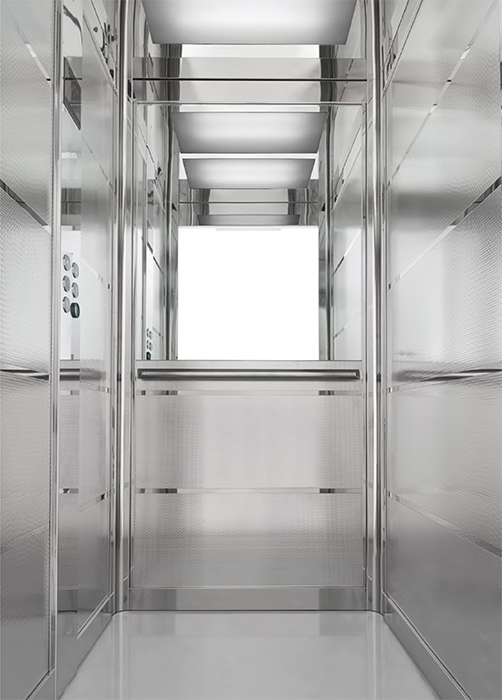

stainless steel large lift cabin with handrail and mirror
commercial lift with large cabin
Available cabin configurations for your elevator
  • Single entry in masonry shaft and metal structure
  • Through entry in masonry shaft and metal structure
  • Adjacent entry in masonry shaft and metal structure
Experience amazing
elevator lift code requirements perth
LIFT CODE

AS1735.1/12

cabin size of a lift
CABIN SIZE

1400w x 1600d (mm)

door-opening of a lift
DOOR OPENING

900mm

load rating of a lift
LOAD RATING

850kg - 1250kg

Travel speed of an elevator
SPEED

0.60m/s or 1.0m/s

how high a lift can go australia
TRAVEL

18m (Max)

Pit size of a lift
PIT SIZE

1300mm

Head-room in a lift
HEAD ROOM

3300mm

how long an elevator lasts
LIFE SPAN

30+ years

how much power does a lift use
POWER

Three Phase 415V

how long an elevator lasts
LIFE SPAN

30+ years

how much power does a lift use
POWER

Three Phase 415V
